Hardware & Extras

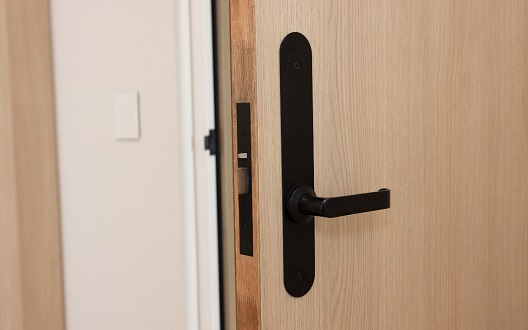

Hardware

All door hardware used on fire doors must be approved and tested to the Australian Standard, AS 1905.1 and AS 1530.4.
Australian Architectural Fire Doors can provide all relevant hardware.
AAFD can supply the following Fire Rated hardware:
  • Locksets
  • Door Closers
  • Door Strike shields
  • Head latches
  • Sequence selectors
  • Door stops
  • Architectural seals
  • Stainless steel lettering & numbering
  • Door signage
  • Kick plates
Hardware 1 AAFD 530x330 2

Extras

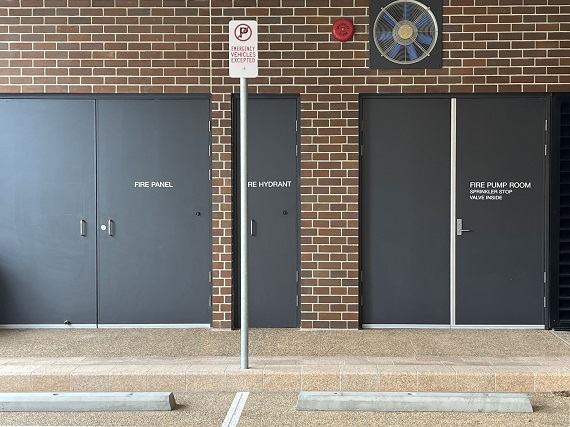

Metal Cladding

A popular extra, metal cladding can be applied to a wide range of fire doors and solid core doors. Sheet metal is applied to both faces of the door, with metal capping framing the edges. Metal cladding is available for doors in a variety of sizes and material including, Zinanneal and Colorbond. The metal cladding adds durability, making the doors resistant to impact, wear, and corrosion. They are commonly used in commercial and industrial settings
metal cladding 1 570x427 1
vision panel fire door 1 AAFD 400x533 1

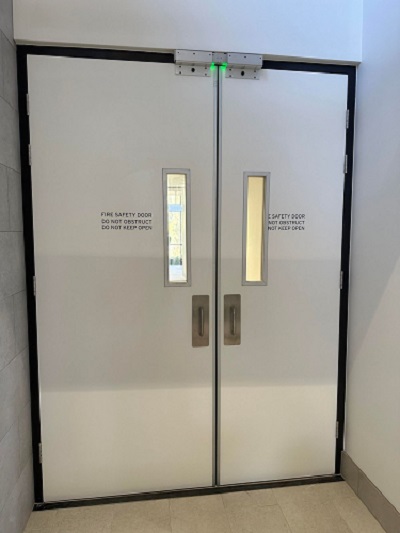

Fire Rated Vision Panels

Vision panels are typically specified where vision into an adjoining room is required.
The insulated vision panel is a multi-laminated fire resistant glass, assembled with clear intumescent interlayers. In the event of fire, these interlayers expand at around 120 degrees Celsius and transform into a rigid and opaque fire shield, which enables the glazing to meet the integrity and insulation criteria, according to the Australian Standard 1530.4-2005.
Vision panels are factory fitted and come in a range of rectangular and circular shapes to suit the application.

Maximum Vision Panel Size

A maximum vision size of:

300 mm high and 200 mm wide (rectangular)

450 mm high and 120 mm wide (rectangular)

600 mm high and 100 mm wide (rectangular) Restricted to maximum (47mm) door

Minimum 150mm clearance must be allowed for vision panel from top and side edges of door leaf.

Our vision panels are designed for fire ratings up to 4 hours when tested to Australian and New Zealand standards and are available with Georgian Wired (1 hour) or Robax (4 hours) glass.

*Restricted to Maxi (47mm) doors

vision panel fire door 2 AAFD 3
internal bottom seal AAFD 8

Door Seals

Australian Architectural Fire Doors supply a range of Fire, Smoke, Acoustic and Weather Seals to suit your requirements.

Being proprietary door assemblies fire doors require only tested & approved seals to be used.

All fire rated seals comply with AS 1905.1 and are fully tested to AS1530.4 for up to 2 Hours on fire rated door assemblies.

Available seals:

  • Intumescent Perimeter Seals
  • Bottom Seals
  • Automatic bottom Seals
  • Meeting Stile Seals

Product displayed in image: Kilargo Automatic Door Bottom Seal

Fire Rated Air Transfer Grilles

Grilles to suit 35mm or 45 mm single and double (pair) fire doors.

Doors finished with treated plywood or steel cladding

A maximum of three grilles (of the same size) can be installed in a door leaf with a minimum spacing of 200 mm between each grille, a minimum of 200 mm from top and bottom edge of door leaf and a minimum 110mm from the edges of the leaf.

Air transfer grilles are essential components in maintaining proper airflow and ventilation in buildings, especially in fire-rated environments. These grilles are designed to allow air to circulate between rooms while maintaining fire and smoke barriers, ensuring that fire protection measures are not compromised. Commonly used in doors and walls, air transfer grilles help in regulating temperature, reducing the buildup of smoke, and enhancing overall indoor air quality, making them vital for safety and comfort in commercial, residential, and industrial settings.

Air transfer grille AAFD

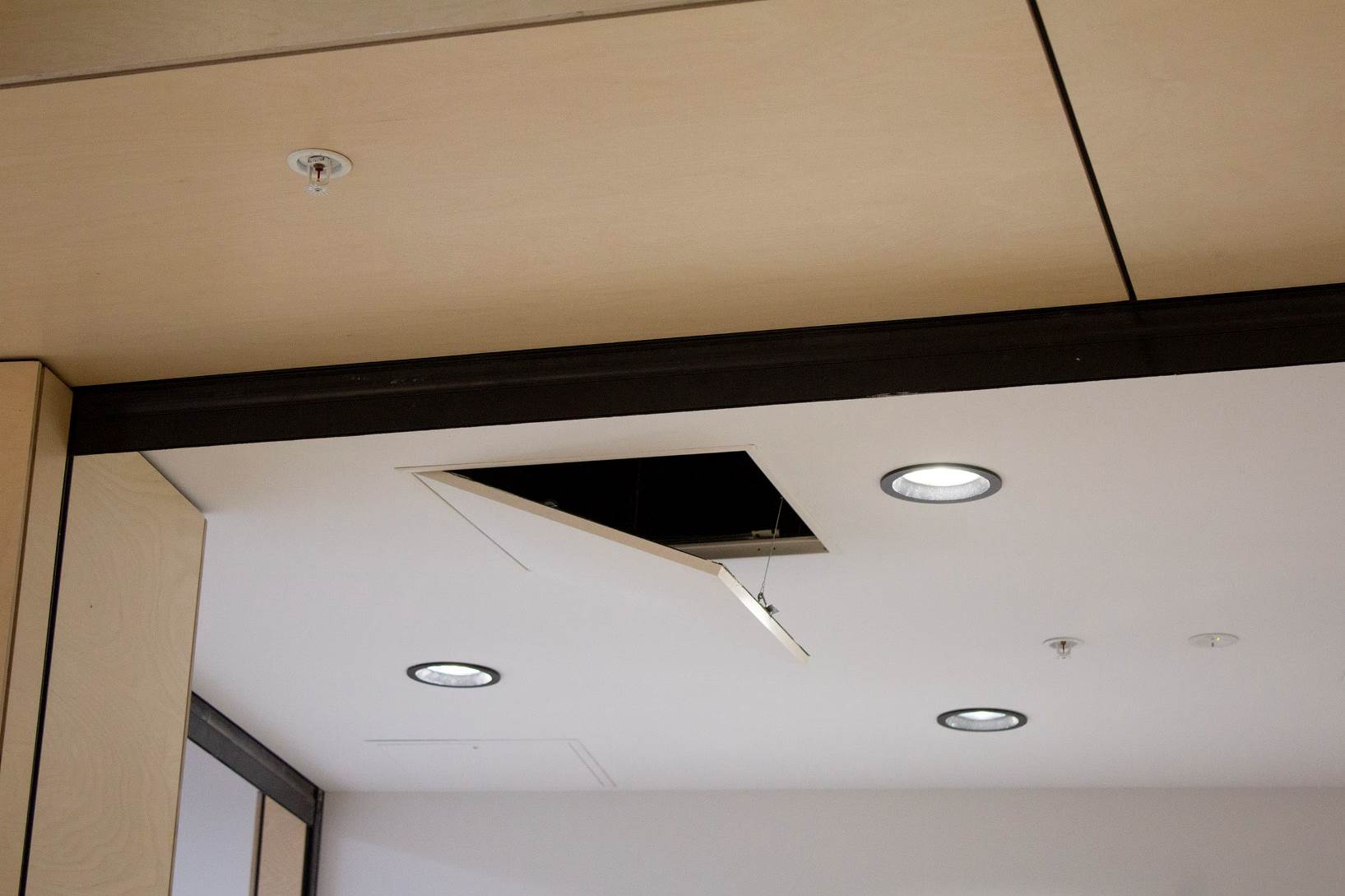

Access Panels

Australian Architectural Fire doors can manufacture a range of access panels including; fire rated access panels, nonrated access panels and lift motor room hatches.

Access panels are essential components in various construction and maintenance scenarios, providing convenient access to concealed areas such as plumbing, electrical systems, and HVAC components. They are designed to blend seamlessly with surrounding surfaces while allowing easy entry for inspections, repairs, and routine maintenance.
Access Panel 1 AAFD

For further information, please contact our sales staff on (07) 3888 5911
