Solid Core Doors

Product Overview

Australian Architectural Fire Doors manufacture & supply a large variety of Solid Core Doors & can design and produce door sets to suit your specific needs, all made to current Australian Standards.
We supply tested & approved components including closers, latching hardware, and glass view windows.
A solid core door is constructed featuring a solid internal core material. Designed to be used in commercial and residential buildings, options are available for both internal & external applications.

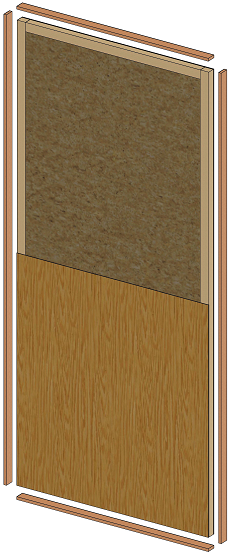

Internal Solid Core Door

Recommended for internal applications only MDF or PLY Facings available as standard option
solid core doors

Sizes

2040 x 820
2100 x 920
2100 x 1200
2400 x 920
2400 x 1200
2700 x 920
2700 x 1200
3000 x 920
3000 x 1200

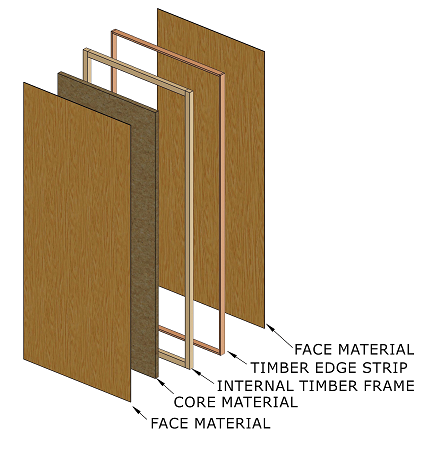

Solid Core Door Constructions AAFD 2 433x450 1

Thickness:

35mm
40mm
45mm

External LVB Core Door

Recommended for internal & external applications
PLY facings available as standard.

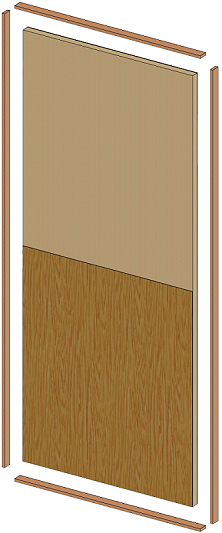

LVB Core Door Constructions AAFD 1 222x533 1

Sizes

2040 x 820
2100 x 920
2100 x 1200
2400 x 920
2400 x 1200
2700 x 920
2700 x 1200
3000 x 920
3000 x 1200

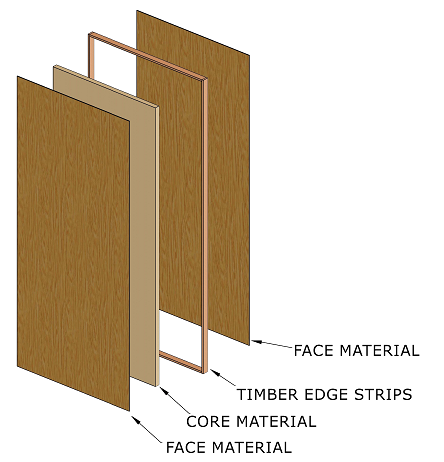

LVB Core Door Constructions AAFD 2 444x462 1

Thickness:

35mm
40mm
45mm

Semi-Solid Hollow Core Door

Manufactured with 90 – 100mm solid timber internal stiles & rails for internal applications only. MDF or PLY facings available

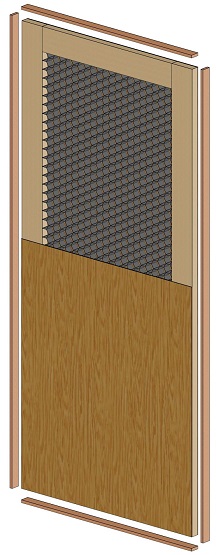

Hollow Core Door Constructions AAFD 1 scaled 216x555 1

Sizes

2040 x 820
2100 x 920
2100 x 1200
2400 x 920
2400 x 1200
2700 x 920
2700 x 1200
3000 x 920
3000 x 1200

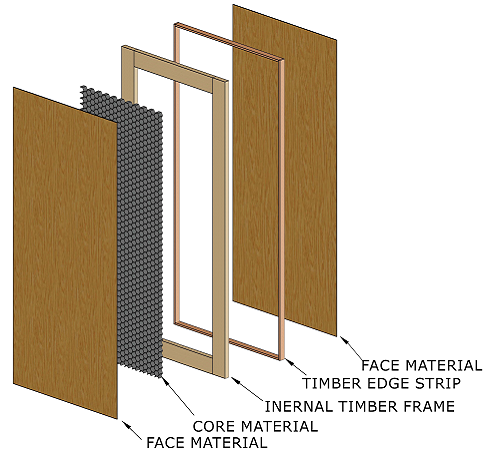

Hollow Core Door Constructions AAFD 2 500x457 1

Thickness

35mm
40mm
45mm
Click here to view our technical sheet for Solid Core Doors
